Description

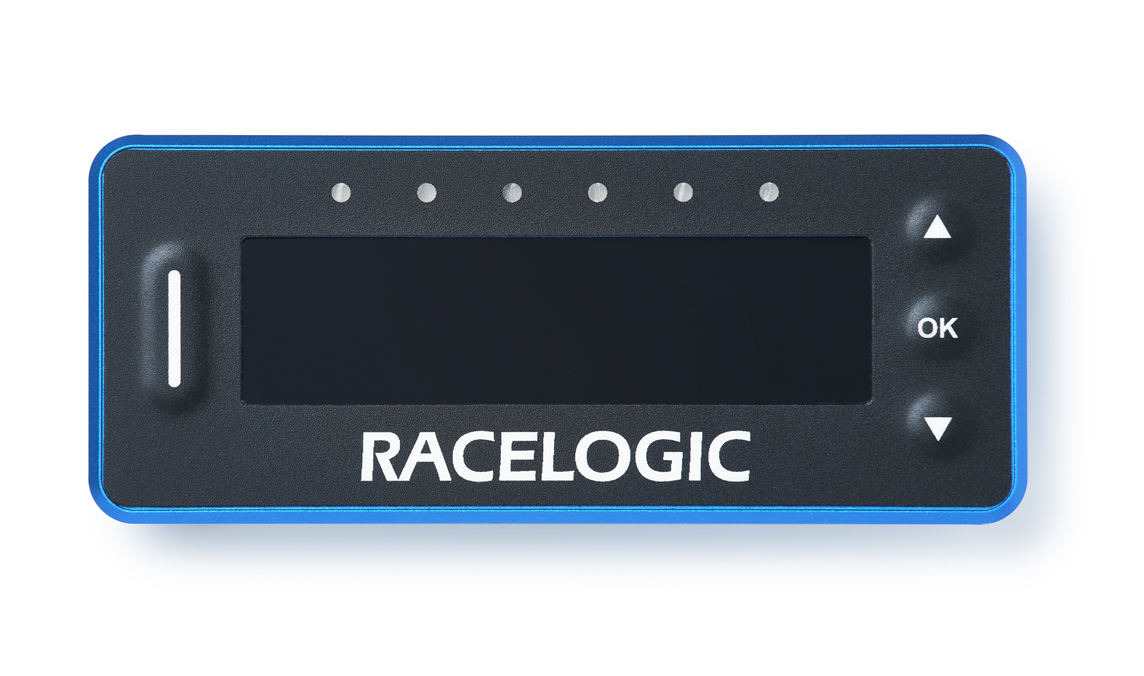

VBOX Pit Lane Timer takes the guesswork out of the crucial pit stop period of an endurance race. It recognizes the preset pit lane entry point as it is crossed, displays your speed until the car comes to a stop, and then counts down to zero to indicate when it is time to get out again. In addition, the high brightness LEDs change colour and intensity, giving the driver an indication whether the pit lane exit will be reached too early, too late, or exactly right.
VBOX Pit Lane Timer logs all data to SD card at 25 times per second.
You can choose between two options: the S version, which features a side connector for easy movement between vehicles and flexible installation, or the R version, which has a rear connector and a sleek, slightly slimmer design for more permanent installations.
Features
- 25 Hz data logging to SD card
- Helps to avoid pit stop penalties
- Prompts you when to leave the pit box, warning in advance if you are going to cross the line too early
- Includes external GNSS antenna
- Easy operation
- Motorsport Lemo connectors
- Low power consumption
- Multiple mounting options
- Free Circuit Tools data analysis software (Windows, MacOS, and iOS)
Package Contents
- VBOX Pit Lane Timer unit (S or R version)
- External GNSS antenna, 2 m, RG-174 & MCX Male Connector
- Unterminated power cable, 2 m, screened
- 8 GB SD Memory Card
- Rear mount bracket (R version only)
- Windscreen suction mount (S version only)
